ROG, the gaming phone brand that players love from the bottom of their hearts, has launched a new ROG gaming phone 5 this year after the official opening of the sale so that many players willingly buy the bill for this gaming phone, both in terms of configuration and operation to bring players a refreshing experience. The ROG game phone 5 seems to be much more than that, recently a big V on the ROG game phone 5 phantom disassembly, in the process of disassembly and found more advantages of the ROG game phone 5.


The V said before the disassembly, ROG game phone 5 for the ultimate game and designed a new internal structure "matrix liquid cooling architecture 5.0", as to whether its structure is delicate enough, the materials used to speak of the still need to open to observe, so the purpose of this disassembly is also to better understand the matrix Liquid cooling architecture 5.0 performance.

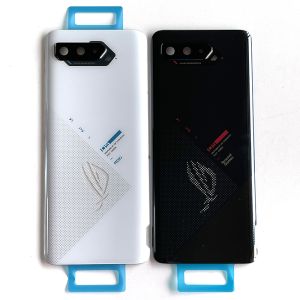

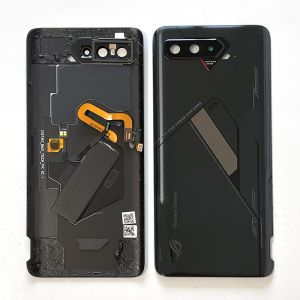

After taking off the back cover, the ROG gaming phone 5 can be seen in the internal design of the difference. The ROG gaming phone 5 is a five-segment motherboard mid-structure design, the biggest advantage of this design is that the heat of the phone will be concentrated in the middle of the phone, and will not allow the top and low end of the operation to feel the high temperature heat, so as to achieve a better gaming experience.


Continue to disassemble, in the disassembly of the motherboard, the big V feel the ROG "eye of defeat" of the name is true. In the middle area of the phone there are a total of two motherboards in a stacked arrangement. When disassembling the upper motherboard, V found that the upper and lower versions are connected using three thermal silicone, and the motherboard shield is also covered with thermal film, while the shield is a removable design. The lower board is the key compliment to the place, the lower board not only has a large amount of thermal grease, while the other side also placed 15 BTB, the last willing to use such material or iPhone. but after demolition of the motherboard, V instantly dumbfounded, feel before demolishing a lonely, and did not unlock the internal structure of the ROG gaming phone 5, it seems to continue to disassemble.

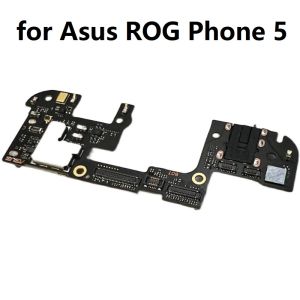

In the next disassembly of the sub-board, V not only found the filler parts and still exist a large number of BTB base design. At the same time, the lower sub-panel also found a large number of BTB, but after dismantling the upper and lower sub-panels, V also found that the ROG gaming phone's internal integration of a total of four mic, X-axis linear motor, buffer components, large size speakers and other surprises. After dismantling the battery, Master V found a large area of heat sink film and VC even heat plate all the way through to the lower part, it seems that in terms of heat dissipation, ROG gaming phone 5 is under the money.



It's no wonder that during the subsequent game test, the ROG gaming phone 5 after 30 minutes of daily use, after the game "Peaceful Elite", the temperature was controlled at 40 degrees up and down, and the grip area was only 33° up and down. And when the game "Original God" was played, the temperature increased significantly, reaching a maximum temperature of about 50 degrees, but the grip area was only about 42°, which shows the power of the matrix liquid cooling architecture 5.0 cooling ability.


Plus the ROG gaming phone 5 phantom version also comes with a cooler fan 5, which is designed to dissipate heat right in the middle of the phone, ensuring 4-5° of cooling on top of the original cooling capacity, basically you can't feel particularly hot playing any game. And cooler fan 5 also provides two physical buttons, and shoulder keys together to form a six-finger operation, but also increased the phone's gaming experience, a multi-benefit, I have to say ROG gaming phone 5 design is really clever.


From the internal structure of the entire ROG gaming phone 5, ROG still added a lot of thought in the design of the phone. And in terms of space structure, the ROG gaming phone 5 is definitely a product with a very high utilization rate. In the hardware strength, materials, space layout clever, software UI optimization to give, it can be said that ROG game phone 5 almost no shortcomings, so after reading the big V disassembly, you are not more like ROG game phone 5?
