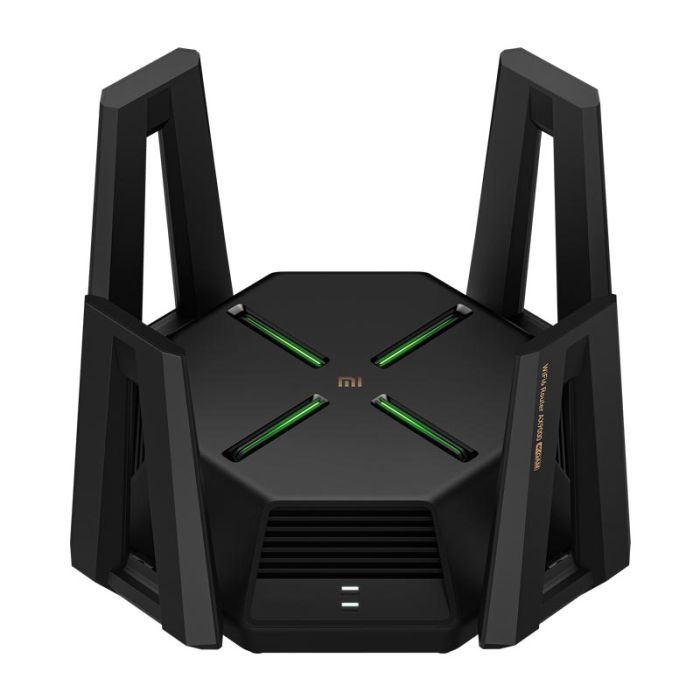

Xiaomi AX9000 Router

Xiaomi AX9000 Router WiFi6 Enhanced Version

Three Channels/E-sports Edition Model/9000M Super Bandwidth





Three Channel Concurrency, Non-Interference

Game Exclusive Channel, Ultra-Low Delay

Compared with the traditional dual-band router, the exclusive frequency band added by the three-band router allows the e-sports devices to enjoy the ultra-high-speed bandwidth and not be interfered by other devices.



WiFi6 Enhanced Version  9000 Megabit Speed Experience

160MHz High Frequency Width

Compared with 80MHz frequency band, the bandwidth is doubled and the speed is also doubled *, which meets the demand of high-speed connection of multiple devices.

* The 5G_GAME band of Xiaomi router AX9000 supports 4×4 160MHz



4K QAM High-Speed Transmission

With devices that support 4K QAM, WiFi accelerates by 20%*.

Multi-Device Parallel Efficient Transmission
OFDMA improves the efficiency of each transmission, while MU-MIMO improves the total capacity of transmission *, Combined, the speed is faster and the delay is lower when multiple devices are used at the same time.

* When used with terminals that support 4K QAM technology, the theoretical speed of 5G_GAME frequency band is 20% higher than that of 1024QAM technology, and the actual speed will be different under the influence of terminals and environment.

E-sports Level Flagship Configuration

Surging Performance Is Invincible

Qualcomm 6-core Flagship Chip

Max Computational Force, MAX Combat Force.

Qualcomm 4-core 2.2GHz CPU + 2-core 1.7GHz NPU (network acceleration engine),

Flagship chips are designed for efficient data transmission and meet the stringent requirements of e-sports networks.



12 Independent Signal Amplifier
Strong Signal Coverage *
Independent signal amplifier can effectively enhance the signal transmission power, at the same time
Improve the sensitivity of signal reception. Super through the wall effect, covering more rooms.

12 High-Gain Antennas
Each antenna group contains three high-gain antennas of 2.4GHz, 5.2GHz and 5.8GHz to provide a wider signal coverage.

2500M Exclusive Network For E-sports
Cable devices can also enjoy high-speed network of e-sports level, and also support link aggregation * of double gigabit LAN port to meet high-speed transmission of internal network.
*LAN port link aggregation will be supported for OTA upgrades until May 31, 2021.



1GB of Extra RAM
Support 1000 devices connected at the same time *, smart home, audio and video entertainment,
Multiplayer games are all satisfied.
*1000 devices is the combined access value of 2.4G/5G/LAN in laboratory conditions, and this capability is scheduled to be supported by OTA upgrades by May 31, 2021.

USB3.0 High Speed Interface
Connected to the hard disk, seconds to high-speed family private cloud disk, support Samba protocol,
Mobile phones, TVs and PCs can all be accessed quickly within a local area network.



E-sports Exclusive Depth Optimization
Acceleration Across Multiple Platforms

Exclusive Acceleration For Xiaomi Devices
Intelligent recognition of your Xiaomi /Redmi phone * in the game scene
Open the exclusive acceleration channel, significantly reduce the game lag and lag.



Star Fort
Designed For Professional Gamers



Custom E-sports Light Effect
16 million color X type atmosphere light, you can set your favorite light color,
At the same time also supports breathing, rainbow, stars and other 5 light effect modes.



Active Heat Dissipation
Professional thermal simulation design of the air duct, with ultra silent fan. Automatically adjust according to temperature conditions
The fan speed, quiet at night, efficient heat dissipation in fierce battle to ensure stable performance.

ConnectWith One Key
Building A Whole-House Intelligent Network

Three Frequency Mesh Networking
One-click configuration of Mesh network, exclusive backhaul frequency band, networking speed is not lost *.
* When two Xiaomi AX9000 Routers are networking, the theoretical throughput rate of Mesh nodes remains unchanged.

Wifi 6 Mesh Hybrid Networking
Support networking with other models of Xiaomi Wifi6 routers *,
Up to 10 units, the whole house without dead corner coverage.
* Mixed networking with Xiaomi AX6000/AX3600/AX1800 Router and Renmi AX5/AX6 Router .

Automatic Discovery Equipment, One Key Distribution Network
Independent AIOT antenna, can automatically find the smart devices around *, no need to enter a password, one key configuration network.



More Professional And Technical Support&Xiaomi Gold Medal Quality





CPU	Qualcomm IPQ8072 Quad-Core A53 2.2GHz CPU
Engine Acceleration Network	Dual-Core 1.7GHz NPU
RAM	1GB
2.4G Wi-Fi	4×4 (IEEE802.11ax 1148Mbps)
5.2G Wi-Fi	4x4(IEEE802.11ax 4804Mbps)
5.8G Wi-Fi	4x4(IEEE802.11ax 2402Mbps)
Antenna	External High Gain Antenna + External AIOT Antenna
Heat Dissipation	Active Heat Dissipation
From The Physical Interface	1* 10/100/1000 WAN/LAN (Auto MDI / MDIX)
	1* 10/100/1000 WAN/LAN (Auto MDI / MDIX)
	3* 10/100/1000LAN(Auto MDI / MDIX)
Led Indicator Light	1 * System Indicators
	1 * INTERNET Indicators
	5 * Network Ports
	1 * Atmosphere Light
Reset Button	1 * Reset Button
USB Port	1 * USB 3.0 Port
Mesh Button	1 * Mesh Button
Power Button	1 * Power Button
Interface Power Input	1 * Power Input Interface
Wireless Standard	IEEE 802.11a/b/g/n/ac/ax,IEEE 802.3/3u/3ab
Certification Standards	GB/T9254-2008;GB4943.1-2011
Three Channels	2.4GHz,5.2GHz,5.8GHz
Wireless Channel	2.4GHz Channel:1,2,3,4,5,6,7,8,9,10,11,12,13
	5.2GHz Channel:36,40,44,48,52,56,60,64
	5.8GHz Channel:149,153,157,161,165
Modulation Mode	11b:DSSS:DBPSK(1Mbps),DQPSK(2Mbps),CCK(5.5/11Mbps)
	11a/g:OFDM:BPSK(6/9Mbps),QPSK(12/18Mbps),16QAM(24/36Mbps), 64QAM(48/54Mbps)
	11n:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM.
	Rate Set: MCS0~MCS15
	11ac: MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM
	Rate set:MCS9~ MCS0 (4 streams compatibles)
	11ac:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM.SIMSON
	11ax:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM.
	Rate Set: MCS0~MCS11(support 4 streams).4096QAM.
	Rate Set: MCS12~MCS13(support 2 streams)
Operating System	MiWiFi ROM, an intelligent router operating system deeply customized based on OpenWRT
Wireless Security	WPA-PSK / WPA2-PSK / WPA3-SAE encryption, wireless access control (black and white list), hidden SSID
Management APP	Web,Android and iOS support website.
Work Environment	Operating Temperature: 0 ~ 40 ° C
	Storage Temperature: 10% ~ 90% RH Non-condensing
	Operating Humidity: -40 ~ 70 ℃
	Storage Humidity: 5% ~ 90% RH Non-condensing
