60M HDMI Extender Over Single Cat5E 6 Transmitter and Receiver

In stock
SKU
PA1013246
Add to Compare
$19.80
60M HDMI Extender Over Single Cat5E 6 Transmitter and Receiver
Add to Wish List
The Extender uses single a Cat - 5E or Cat - 6 (recommended) cable instead of HDMI cable to transmit high definition signal up to 60 meters. It’s designed to supply for long distance transmission with high definition signal.


Features:
Support HDMI 1.4a
Support 3D

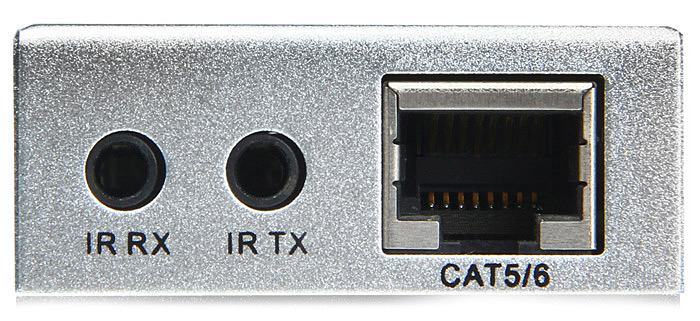

Supports Bi-directional IR control
Support highest video resolution 1080p / 60Hz
Support 1.5Gbps data rate and tmds clock up to 148.5MHz
Support 8 bit deep color
Support AWG26 HDMI standard cable, input up to 10 metres, output up to 15 metres
Signal transmission: By using single cat - 5e or cat - 6 (recommended) cable instead of HDMI cable, it can extend the distance up to 60 meters between TX and RX
No loss of quality
Install in minutes
Need DC 5V / 1A power supply

Specifications:
Length of CAT - 6 / CAT - 5E cable between RX and TX: Up to 60 meters
HDMI Input: 24 / 50 / 60fs / 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
Support audio: DTS / Dolby / DSD
HDMI Output: 24 / 50 / 60fs / 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
Max bandwidth: 148.5MHz
Max baud rate: 1.5Gbps
Input video signal: 0.5 - 1.5Volts p - p
Output DDC signal: 5Volts p - p ( TT1L )
Input HDMI cable distance: Less than or equal to 10m AWG26 HDMI standard cable
Output HDMI cable distance: Less than or equal to 15m AWG26 HDMI standard cable
TX Max working current: 510mA
RX Max working current: 100mA
Power adapter format: Input: AC ( 50Hz 60Hz ) 100V - 240V Output: DC5V / 1A
Operating Humidity range: 5 to 90 percent RH (No Condensation)

Specifications

Specification

Type: Extender
Interface: Cat 5e, Cat 5, Cat 6, HDMI, DC 5V

Size and Weight

Product Weight: 0.383 kg
Package Weight: 0.539 kg
Product Size (L x W x H): 8.1 x 4.5 x 1.8 cm / 3.18 x 1.77 x 0.71 inches
Package Size (L x W x H): 20 x 14.5 x 5.5 cm / 7.86 x 5.70 x 2.16 inches

Package Contents

Package Contents: 1 x TX Extender, 1 x RX Extender, 2 x DC 5V Power Adapter, 2 x Pair of Bi-directional IR Cable, 1 x English User Manual
