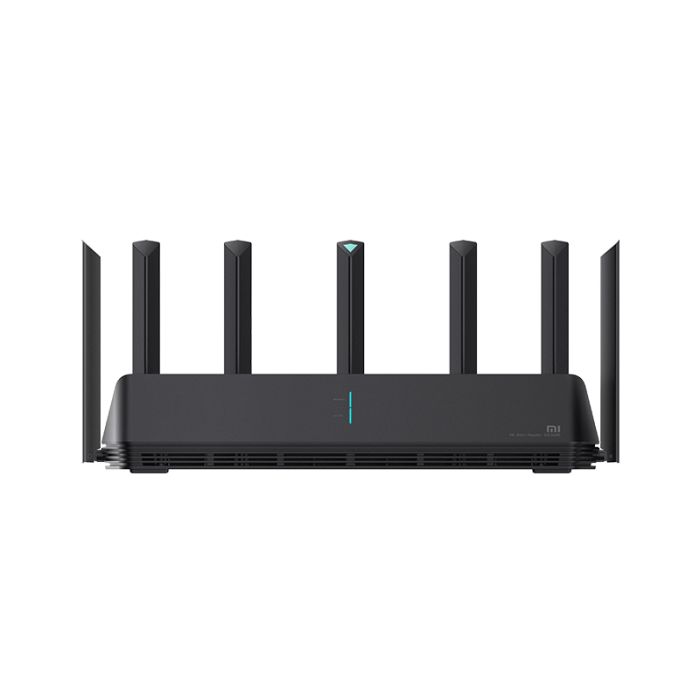

Xiaomi AloT Router AX3600 WiFi 6 Wireless Router

Xiaomi AloT Router AX3600 WiFi 6 2976 Mbps 6*Antennas 512MB OFDMA MU-MIMO 2.4G 5G 6 Core Wireless Router
Add to Wish List


CPU IPQ8071A A53 4Core 1GHz
Memory 512MB
2.4G Wi-Fi 2x2 (IEEE802.11ax, 574Mbps)
5G Wi-Fi 4x4 (IEEE402.11ax, 2402Mbps)
Antenna 6*External high gain antennas + 1*AloT Antenna
Heat dissipation Natural heat dissipation
Physical interface 1*10/100/1000 WAN (Auto MDI/ MDIX)
3*10/100/1000 LAN (Auto MDI/ MDIX)
LED Indicator light 1*SYSTEM indicators
1*INTERNET indicators
4*Network ports
1*AloT light
Reset button 1*Reset button
Wireless standard IEEE 802.11a/b/g/n/ac, IEEE802.3/3u/3ab
Certification standards GB/T9254-2008; GB4943.1-2011
Dual band 2.4GHz, 5GHz
Wireless channel 2.4GHz Channel: 1,2,3,4,5,6,7,8,9,10,11,12,13
5GHz Channel: 36,40,44,48,149,153,157,161,165
Modulation Mode 11b: DSSS: DBPSK(1Mbps), DQPSK (2Mbps), CCK (5.5/11Mbps)
11a/g: OFDM: BPSK (6/9Mbps), QPSK (12/18Mbps), 16QAM(24/36Mbps), 64QAM(48/54Mbps)
11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM. Rate set: MCS0~MCS15
11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM.
Rate set: MCS0~MCS9 (4 streams supported)
11ax: MIMI-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM. Rate set: MCS0~MCS11(4 streams supported)
Operating system Intelligent router operating system MiWiFi ROM based on OpenWRT deep customization
Wireless security WPA-PSK / WPA2-PSK encryption, wireless access control (black and white list), hidden SSID, intelligent anti-scratch network
Management application Support Web, Android, iOS

Working environment
Working temperature: 0~40℃
Storage temperature: 10%~90%RH Non-condensing
Working humidity: -40~70℃
Storage humidity: 5%~90%RH Non-condensing

Package Included:

1 X Xiaomi AloT router AX3600
1 X User manual
1 X Power line (12V/1.5A)
1 X Network cable
